Name: Peavey PVX-15 2-Way Passive Speaker
SKU: 466319

Peavey's PVX-15 is an 800W passive (unpowered) 15" two-way loudspeaker that's versatile enough for front-line reinforcement or use as a floor monitor. The PVX-15's lightweight, roadworthy molded polypropylene exterior and multiple fly points make it ideal for life on the road or permanent installation.

Voiced for live music or speech applications, these two-way speaker systems will handle 400 watts program and 800 watts peak power. Custom Waveguide technology yields a 100º by 50º coverage of critical vocal frequencies ensuring the audience can hear every word. The unique cabinet design allows the PVX-15 to be utilized as a screaming floor monitor that the performers are guaranteed to hear on stage.

Peavey PVX-15 Features:

Two-way sound reinforcement enclosure
15” heavy-duty woofer with 2 3/8” voice coil & 50 oz. magnet
RX 14 compression driver, with 1.4 inch titanium diaphragm
400W program/800W peak power handling
Patented Quadratic Throat Waveguide™ technology, 100 by 50 degree coverage
Asymmetrical horn aims the sound down 10°, at the audience, not
over their heads
Crossover network for driver protection and EQ
Durable plastic injection-molded trapezoidal enclosure

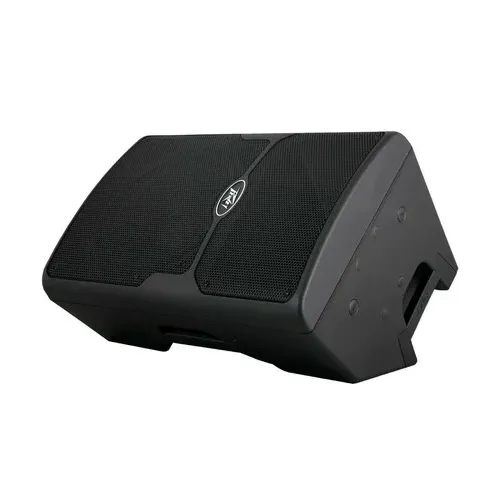

Extra angled section on right side allows floor monitor use
Full-coverage heavy-duty perforated steel grilles, with powder coat finish
Pole mount molded-In
Top, bottom and right side flying point inserts

Peavey PVX-15 Specifications:

Frequency Range, 1 meter on-axis, swept-sine in half space environment:45 Hz to 21 kHz
Frequency Response, 1 meter on-axis, swept-sine in anechoic environment:57 Hz to 20 kHz (±3 dB)
Usable Low Frequency limit (-10dB point anechoic): 43 Hz
Power Rating (program): 400W
Peak Power Capacity (peak): 800W
Sound Pressure Level, 1 Watt, 1 meter in anechoic environment: 97 dB SPL, (2.83V input)
Maximum Sound Pressure Level (1 meter): 120 dB SPL continuous 126 dB SPL peak
Radiation Angle measured at -6dB point of polar response: Nominal: 100° horizontal X 50° vertical (Axis of the vertical main polar lobe is angled down 10°, resulting in the angular pattern with respect to straight ahead being 15, -35°)
Transducer Complement:Heavy-duty 15” woofer with 2 3/8” voice coil & 50 oz. magnet RX™14 1.4” titanium diaphragm dynamic compression driver
Box Tuning Frequency: 53 Hz
Crossover Frequency (internal passive): 2.6 kHz
Impedance (Z)

Nominal: 8.0 Ω
Minimum: 6.5 Ω

Input Connections
One four-pin twist-lock connector paralleled with a 1/4” phone jack
Enclosure Materials & Finish: Black ABS plastic with textured surface, black powder-coated perforated grille.
Mounting provisions: Unit has two sets of two M10 inserts, one pair on the top, and one pair on the bottom. Additional mounting points are a set of four M8 inserts on the top, and a set of four on the right side in the handle recess, and a set of four on the bottom, which use thePeavey VersaMount™ 70 mounting bracket.
Four rubber feet provide vibration free floor or stage use, and a molded-in stand mounting cup is on the bottom.
Weight Unpacked: 47.00 lb(21.319 kg)
Weight Packed: 53.79 lb(24.4 kg)
Width Packed: 21.625"(54.9275 cm)
Height Packed: 31.625"(80.3275 cm)
Depth Packed: 20.375"(51.7525 cm)
